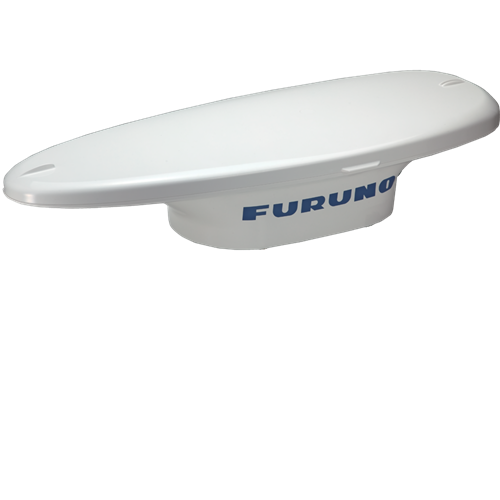

High accuracy Satellite Compass with a compact 2-sensor antenna. Uses
GPS, Galileo and/or GLONASS satellite systems to ensure the highest
precision and coverage. 0.4 degree course accuracy.
Precise and accurate Heading
The SC70 and SC130 are the latest satellite
compasses built on FURUNO’s commercial-grade technology platform. These
satellite compasses prove their value by increasing the accuracy of
other devices, such as Radar, ARPA, Scanning Sonar, Current Indicator,
Chart Plotter, ECDIS and Autopilots. They provide a highly accurate
heading input to these other technologies by utilizing the very latest
GNSS (Global Navigation Satellite System). This satellite system is
comprised of GPS, Galileo and GLONASS to ensure the highest precision
and a continuous coverage.
|
|
|
Bow and Stern monitoring for safe berthing

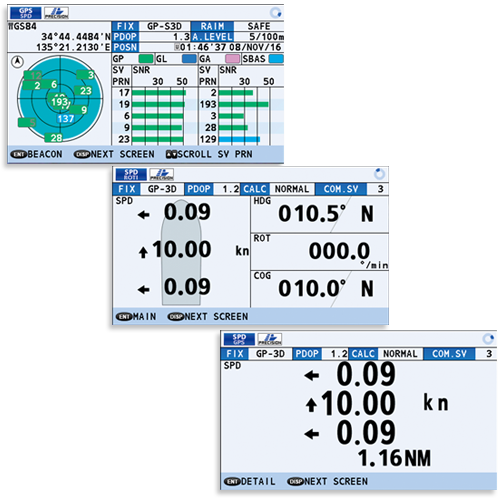

The Satellite Compass provides a variety of
data, including GPS Positioning, SOG (Speed Over Ground), COG (Course
Over Ground), ROT (Rate Of Turn) and 3-axis speed (bow, stern and
longitudinal). All of these data assist with critical maneuvers, such as
berthing. The Compass is maintenance-free - a great asset for any
vessel - and connects easily into the existing shipboard network via
Ethernet connection.
|
IMO Type Approved as THD, GPS and ROTI
The SC70 provides highly accurate heading
data of 0.4° for autopilot, Radar, ARPA, Scanning Sonar, Current
Indicator, Chart Plotter, ECDIS and Autopilots. It is ideal for small to
medium boats requiring highly accurate heading, and is IMO
Type-approved as THD, GPS and ROTI, complying with the IEC/ISO
requirements. It features a rapid follow-up rate 40°/s, twice the IMO
high-speed craft requirement of 20°/s.
|
|
SC70 Satellite GNS
- Brand: FURUNO
- Product Code: SC70
- Availability: In Stock
